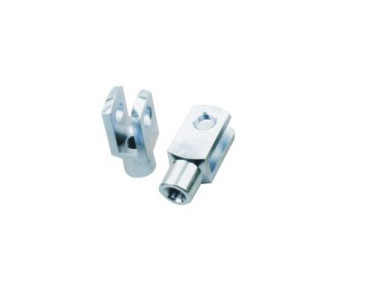

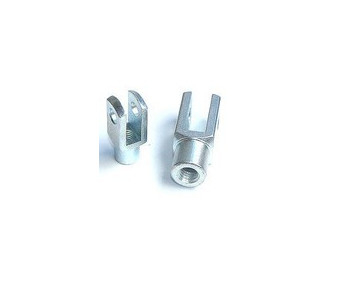

forcella din71752 in steel zinc plated
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Wuerd |
| Certification: |
ISO9001 |
| Model Number: |
G16x32FG,G20x40FG |
Payment & Shipping Terms:
| Minimum Order Quantity: |
100pcs |
| Packaging Details: |
plastic bags in carton |
| Payment Terms: |
Western Union |
| Supply Ability: |
300,000pcs per month |
Contact Now
Detailed Product Description
-Standard: clevis DIN71752/ISO8140
-Material: Low carbon steel
Alternative: stainless steel 304,316 or Aluminium
-Surface protection: electroplated galvanized; Passivated in white-blue(sliver/clear),zinc/yellow or zinc/black
Optional: Phosphatized and oiled
-Left thread is avaiable as customer's requieremnt
-Non-standard clevis as customer's drawings or samples.
| Item |
d1
H9 |
g
±0.5 |
a
h 11
+0.30
-0.16 |
b1
B 13 |
b2 |
d2 |
d3
±0.3 |
f
±0.2 |
l1
±0.5 |
l2 |
l3 |
r3
±0.2 |
Weight
kg ≈ |
| G 4x8 |
4 |
8 |
8 |
4 |
B 13 |
M 4x0.7 |
8 |
0.5 |
21 |
16 |
±0.3 |
6 |
0.5 |
0.005 |
| G 4x16 |
4 |
16 |
8 |
4 |
M 4x0.7 |
8 |
0.5 |
29 |
24 |
6 |
0.5 |
0.007 |
| G 5x10 |
5 |
10 |
10 |
5 |
M 5x0.8 |
9 |
0.5 |
26 |
20 |
7.5 |
0.5 |
0.009 |
| G 5x20 |
5 |
20 |
10 |
5 |
M 5x0.8 |
9 |
0.5 |
36 |
30 |
7.5 |
0.5 |
0.0013 |
| G 6x12 |
6 |
12 |
12 |
6 |
M 6x1 |
10 |
0.5 |
31 |
24 |
9 |
0.5 |
0.0015 |
| G 6x24 |
6 |
24 |
12 |
6 |
M 6x1 |
10 |
0.5 |
43 |
36 |
±0.4 |
9 |
0.5 |
0.021 |
| G 8x16 |
8 |
16 |
16 |
8 |
M 8x1.25 |
14 |
0.5 |
42 |
32 |
12 |
0.5 |
0.037 |
| G 8x16FG |
8 |
16 |
16 |
8 |
M 8x1 |
14 |
0.5 |
42 |
32 |
12 |
0.5 |
0.037 |
| G 8x32 |
8 |
32 |
16 |
8 |
M 8x1.25 |
14 |
0.5 |
58 |
48 |
12 |
0.5 |
0.054 |
| G 8x32FG |
8 |
32 |
16 |
8 |
M 8x1 |
14 |
0.5 |
58 |
48 |
12 |
0.5 |
0.054 |
| G 10x20 |
10 |
20 |
20 |
10 |
M 10x1.5 |
18 |
0.5 |
52 |
40 |
15 |
0.5 |
0.074 |
| G 10x20FG |
10 |
20 |
20 |
10 |
M 10x1.25 |
18 |
0.5 |
52 |
40 |
15 |
0.5 |
0.074 |
| G 10x40 |
10 |
40 |
20 |
10 |
+0.7
+0.15 |
M 10x1.5 |
18 |
0.5 |
72 |
60 |
15 |
0.5 |
0.116 |
| G 10x40FG |
10 |
40 |
20 |
10 |
M 10x1.25 |
18 |
0.5 |
72 |
60 |
15 |
0.5 |
0.116 |
| G 12x24 |
12 |
24 |
24 |
12 |
M 12x1.75 |
20 |
0.5 |
62 |
48 |
18 |
0.5 |
0.121 |
| G 12x24FG |
12 |
24 |
24 |
12 |
M 12x1.25 |
20 |
0.5 |
62 |
48 |
18 |
0.5 |
0.121 |
| G 12x48 |
12 |
48 |
24 |
12 |
M 12x1.75 |
20 |
0.5 |
86 |
72 |
18 |
0.5 |
0.175 |
| G 12x48FG |
12 |
48 |
24 |
12 |
M 12x1.25 |
20 |
0.5 |
85 |
72 |
18 |
0.5 |
0.175 |
| G 14x28 |
14 |
28 |
27 |
14 |
M 14x2 |
24 |
1 |
72 |
56 |
22.5 |
1 |
0.178 |
| G 14x28FG |
14 |
28 |
27 |
14 |
M 14x1.5 |
24 |
1 |
72 |
56 |
22.5 |
1 |
0.178 |
| G 14x56 |
14 |
56 |
27 |
14 |
M 14x2 |
24 |
1 |
101 |
85 |
22.5 |
1 |
0.258 |
| G 14x56FG |
14 |
56 |
27 |
14 |
M 14x1.5 |
24 |
1 |
101 |
85 |
22.5 |
1 |
0.258 |
| G 16x32 |
16 |
32 |
32 |
16 |
M 16x2 |
26 |
1 |
83 |
64 |
24 |
1 |
0.282 |
| G 16x32FG |
16 |
32 |
32 |
16 |
M 16x1.5 |
26 |
1 |
83 |
64 |
24 |
1 |
0.282 |
| G 16x64 |
16 |
64 |
32 |
16 |
M 16x2 |
26 |
1 |
115 |
96 |
24 |
1 |
0.411 |
| G 16x64FG |
16 |
64 |
32 |
16 |
M 16x1.5 |
26 |
1 |
115 |
96 |
24 |
1 |
0.411 |
| G 18x36 |
18 |
36 |
36 |
18 |
M 18x2.5 |
30 |
1 |
94 |
72 |
27 |
1.5 |
0.39 |
| G 18x36FG |
18 |
36 |
36 |
18 |
M 18x1.5 |
30 |
1 |
94 |
72 |
27 |
1.5 |
0.39 |
| G 20x40 |
20 |
40 |
40 |
20 |
M 20x2.5 |
34 |
1 |
105 |
80 |
30 |
1.5 |
0.55 |
| G 20x40FG |
20 |
40 |
40 |
20 |
M 20x1.5 |
34 |
1 |
105 |
80 |
30 |
1.5 |
0.55 |
| G 20x80 |
20 |
80 |
40 |
20 |
M 20x2.5 |
34 |
1 |
145 |
120 |
30 |
1.5 |
0.8 |
| G 20x80FG |
20 |
80 |
40 |
20 |
M 20x1.5 |
34 |
1 |
145 |
120 |
30 |
1.5 |
0.8 |
| G 25x50 |
25 |
50 |
50 |
25 |
M 24x3 |
42 |
1.5 |
132 |
100 |
36 |
1.5 |
1.1 |
| G 25x50FG |
25 |
50 |
|
|
